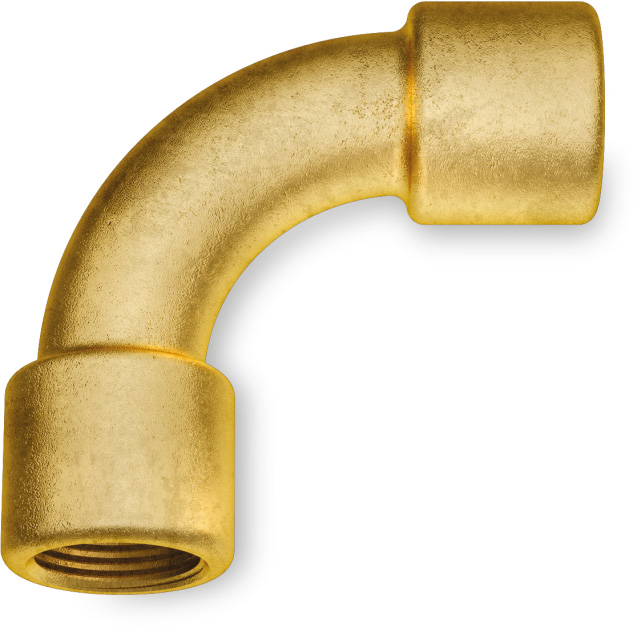

Brass Elbow For Cable Gland
| TYPE | 90° ELBOW |
|---|---|
| OPTION THREAD | METRIC, NPT |
| GLAND MATERIAL | BRASS |
| SIZE ‘A’ | ||||
|---|---|---|---|---|
| CODE | NPT | METRIC | B | C |
| MM-ELB-00 | 3/8″ | M16 | 17 | 20 |
| MM-ELB-01 | 1/2″ | M20 | 19 | 22 |
| MM-ELB-02 | 3/4″ | M25 | 19 | 22 |
| MM-ELB-03 | 1″ | M32 | 24 | 28 |
| MM-ELB-04 | 1 1/4″ | M40 | 24 | 28 |
| MM-ELB-05 | 1 1/2″ | M50 | 24 | 28 |
| MM-ELB-06 | 2″ | M63 | 24 | 28 |
| MM-ELB-07 | 2 1/2″ | M75 | 32 | 40 |
| MM-ELB-08 | 3″ | M90 | 32 | 40 |
All the dimensions given are in Millimeters (mm)
Disclaimer: Product sizes mentioned in the catalogue are for reference purpose only. The actual dimensional details would be available only after request based on the actual requirement.
