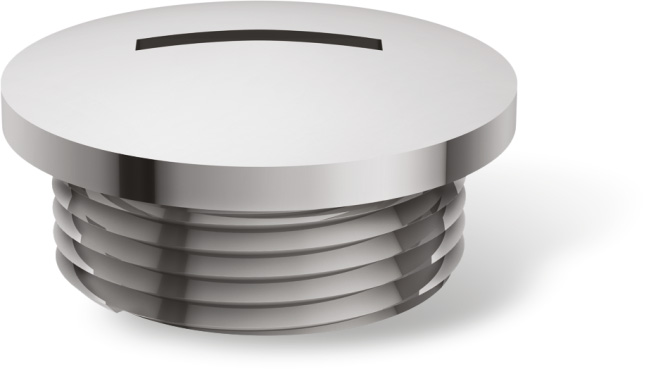

Plug Slotted For Cable Gland
SLOTTED METRIC PLUG

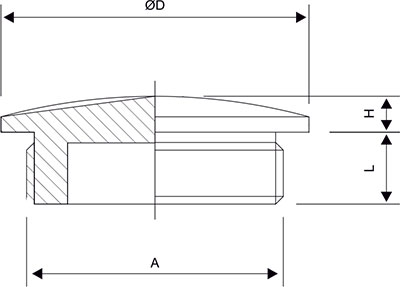

| CODE | A | ØD | H | L |
|---|---|---|---|---|
| STPSLTM6SHT | M6x1 | 9 | 3 | 5 |
| STPSLTM8SHT | M8x1.25 | 10 | 3 | 5 |
| STPSLTM10SHT | M10x1.5 | 12 | 3 | 5 |
| STPSLTM12SHT | M12x1.5 | 14 | 3 | 5 |
| STPSLTM16SHT | M16x1.5 | 19 | 3 | 5 |
| STPSLTM20SHT | M20x1.5 | 24 | 3 | 6 |
| STPSLTM25SHT | M25x1.5 | 28 | 4 | 6 |
| STPSLTM32SHT | M32x1.5 | 35 | 4 | 8 |
| STPSLTM40SHT | M40x1.5 | 45 | 6 | 8 |
| STPSLTM50SHT | M50x1.5 | 55 | 6 | 10 |
| STPSLTM63SHT | M63x1.5 | 70 | 6 | 10 |
| STPSLTM75SHT | M75x1.5 | 80 | 6 | 12 |
SLOTTED METRIC PLUG (LONG THREAD)
| CODE | A | ØD | H | L |
|---|---|---|---|---|
| STPSLTM6LNG | M6x1 | 9 | 3 | 8 |
| STPSLTM8LNG | M8x1.25 | 10 | 3 | 10 |
| STPSLTM10LNG | M10x1.5 | 12 | 3 | 10 |
| STPSLTM12LNG | M12x1.5 | 14 | 3 | 10 |
| STPSLTM16LNG | M16x1.5 | 19 | 3 | 10 |
| STPSLTM20LNG | M20x1.5 | 24 | 3 | 10 |
| STPSLTM25LNG | M25x1.5 | 28 | 4 | 10 |
| STPSLTM32LNG | M32x1.5 | 35 | 4 | 14 |
| STPSLTM40LNG | M40x1.5 | 45 | 6 | 14 |
| STPSLTM50LNG | M50x1.5 | 55 | 6 | 14 |
| STPSLTM63LNG | M63x1.5 | 70 | 6 | 15 |
| STPSLTM75LNG | M75x1.5 | 80 | 6 | 15 |
SLOTTED PG PLUG
| CODE | A | ØD | H | L |
|---|---|---|---|---|
| STPSLTPG7SHT | Pg7 | 14 | 3 | 5 |
| STPSLTPG9SHT | Pg9 | 17 | 3 | 6 |
| STPSLTPG11SHT | Pg11 | 20 | 3 | 6 |
| STPSLTPG13SHT | Pg13 | 22 | 3 | 7 |
| STPSLTPG16SHT | Pg16 | 24 | 3 | 7 |
| STPSLTPG21SHT | Pg21 | 30 | 4 | 7 |
| STPSLTPG29SHT | Pg29 | 39 | 4 | 8 |
| STPSLTPG36SHT | Pg36 | 50 | 6 | 9 |
| STPSLTPG42SHT | Pg42 | 60 | 6 | 10 |
| STPSLTPG48SHT | Pg48 | 64 | 6 | 10 |
SLOTTED PG PLUG (LONG THREAD)
| CODE | A | ØD | H | L |
|---|---|---|---|---|
| STPSLTPG7LGT | Pg7 | 14 | 3 | 10 |
| STPSLTPG9LGT | Pg9 | 17 | 3 | 10 |
| STPSLTPG11LGT | Pg11 | 20 | 3 | 10 |
| STPSLTPG13LGT | Pg13 | 22 | 3 | 10 |
| STPSLTPG16LGT | Pg16 | 24 | 3 | 10 |
| STPSLTPG21LGT | Pg21 | 30 | 4 | 12 |
| STPSLTPG29LGT | Pg29 | 39 | 4 | 12 |
| STPSLTPG36LGT | Pg36 | 50 | 6 | 15 |
| STPSLTPG42SLGT | Pg42 | 60 | 6 | 15 |
| STPSLTPG48LGT | Pg48 | 64 | 6 | 15 |
