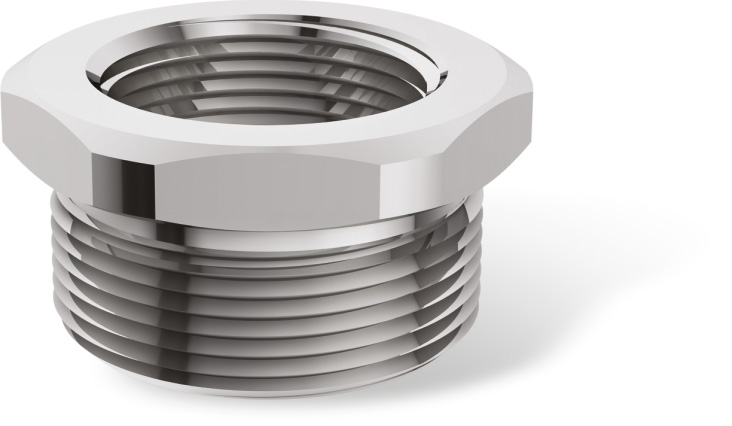

NPT Threaded Reducer For Cable Gland
NPT TO METRIC REDUCER

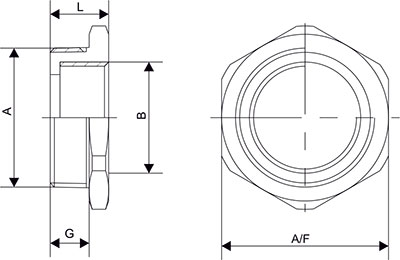

| CODE | A | B | L | A/F | G |
|---|---|---|---|---|---|
| RD0N00M | 3/8” NPT | M12X15 | 21 | 20 | 15 |
| RD1N00M | 1/2” NPT | M12X1.5 | 24 | 25 | 18 |
| RD1N0M | 1/2” NPT | M16X1.5 | 24 | 25 | 18 |
| RD2M00M | 3/4” NPT | M12X1.5 | 24 | 30 | 18 |
| RD2N0M | 3/4” NPT | M16X1.5 | 24 | 30 | 18 |
| RD2N1M | 3/4” NPT | M20X1.5 | 24 | 30 | 18 |
| RD3N00M | 1” NPT | M12X1.5 | 28 | 36 | 22 |
| RD3N0M | 1” NPT | M16X1.5 | 28 | 36 | 22 |
| RD3N1M | 1” NPT | M20X1.5 | 28 | 36 | 22 |
| RD3N2M | 1” NPT | M25X1.5 | 28 | 36 | 22 |
| RD4N00M | 1.1/4” NPT | M12X1.5 | 28 | 45 | 22 |
| RD4N0M | 1.1/4” NPT | M16X1.5 | 28 | 45 | 22 |
| RD4N1M | 1.1/4” NPT | M20X1.5 | 28 | 45 | 22 |
| RD4N2M | 1.1/4” NPT | M25X1.5 | 28 | 45 | 22 |
| RD4N3M | 1.1/4” NPT | M32X1.5 | 28 | 45 | 22 |
| RD5N1M | 1.1/2” NPT | M20X1.5 | 32 | 55 | 24 |
| RD5N2M | 1.1/2” NPT | M25X1.5 | 32 | 55 | 24 |
| RD5N3M | 1.1/2” NPT | M32X1.5 | 32 | 55 | 24 |
| RD5N4M | 1.1/2” NPT | M40X1.5 | 32 | 55 | 24 |
| RD6N2M | 2” NPT | M25X1.5 | 32 | 68 | 24 |
| RD6N3M | 2” NPT | M32X1.5 | 32 | 68 | 24 |
| RD6N4M | 2” NPT | M40X1.5 | 32 | 68 | 24 |
| RD6N5M | 2” NPT | M50X1.5 | 32 | 68 | 24 |
| RD7N3M | 2.1/2” NPT | M32X1.5 | 38 | 80 | 20 |
| RD7N4M | 2.1/2” NPT | M40X1.5 | 38 | 80 | 28 |
| RD7N5M | 2.1/2” NPT | M50X1.5 | 38 | 80 | 28 |
| RD7N6M | 2.1/2” NPT | M63X1.5 | 38 | 80 | 28 |
| RD8N3M | 3” NPT | M32X1.5 | 38 | 95 | 28 |
| RD8N4M | 3” NPT | M40X1.5 | 38 | 95 | 28 |
| RD8N5M | 3” NPT | M50X1.5 | 38 | 95 | 28 |
| RD8N6M | 3” NPT | M63X1.5 | 38 | 950 | 28 |
| RD8N7M | 3” NPT | M75X1.5 | 38 | 95 | 28 |
| RD9N4M | 4” NPT | M40X1.5 | 38 | 120 | 28 |
| RD9N5M | 4” NPT | M50X1.5 | 38 | 120 | 28 |
| RD9N6M | 4” NPT | M63X1.5 | 38 | 120 | 28 |
| RD9N7M | 4” NPT | M75X1.5 | 38 | 120 | 28 |
| RD9N8M | 4” NPT | M90X1.5 | 38 | 120 | 28 |
NPT TO NPT REDUCER
| CODE | A | B | L | A/F | G |
|---|---|---|---|---|---|
| RD1N0N | 1/2”NPT | 3/8”NPT | 26 | 25 | 18 |
| RD2N1N | 3/4”NPT | 1/2”NPT | 26 | 30 | 18 |
| RD3N1N | 1”NPT | 1/2”NPT | 30 | 36 | 22 |
| RD3N2N | 1”NPT | 3/4”NPT | 30 | 36 | 22 |
| RD4N1N | 1.1/4”NPT | 1/2”NPT | 30 | 45 | 22 |
| RD4N2N | 1.1/4”NPT | 3/4”NPT | 30 | 45 | 22 |
| RD4N3N | 1.1/4”NPT | 1”NPT | 30 | 45 | 22 |
| RD5N1N | 1.1/2”NPT | 1/2”NPT | 30 | 55 | 22 |
| RD5N2N | 1.1/2”NPT | 3/4”NPT | 30 | 55 | 22 |
| RD5N3N | 1.1/2”NPT | 1”NPT | 30 | 55 | 22 |
| RD5N4N | 1.1/2”NPT | 1.1/4”NPT | 30 | 55 | 22 |
| RD6N2N | 2”NPT | 3/4”NPT | 32 | 68 | 24 |
| RD6N3N | 2”NPT | 1”NPT | 32 | 68 | 24 |
| RD6N4N | 2”NPT | 1.1/4”NPT | 32 | 68 | 24 |
| RD6N5N | 2”NPT | 1.1/2”NPT | 32 | 68 | 24 |
| RD7N2N | 2.1/2”NPT | 3/4”NPT | 32 | 80 | 24 |
| RD7N3N | 2.1/2”NPT | 1”NPT | 32 | 80 | 24 |
| RD7N4N | 2.1/2”NPT | 1.1/4”NPT | 32 | 80 | 24 |
| RD7N5N | 2.1/2”NPT | 1.1/2”NPT | 32 | 80 | 24 |
| RD7N6N | 2.1/2”NPT | 2”NPT | 32 | 80 | 24 |
| RD8N4N | 3”NPT | 1.1/4”NPT | 36 | 95 | 28 |
| RD8N5N | 3”NPT | 1.1/2”NPT | 36 | 95 | 28 |
| RD8N6N | 3”NPT | 2”NPT | 36 | 95 | 28 |
| RD8N7N | 3”NPT | 2.1/2”NPT | 36 | 95 | 28 |
| RD9N5N | 4”NPT | 1.1/2”NPT | 40 | 120 | 30 |
| RD9N6N | 4”NPT | 2”NPT | 40 | 120 | 30 |
| RD9N7N | 4”NPT | 2.1/2”NPT | 40 | 120 | 30 |
| RD9N8N | 4”NPT | 3”NPT | 40 | 120 | 30 |
