E1FPF Type Double Compression Cable Gland
We are India's leading manufacturer, supplier, and exporter of E1FPF Double Compression Weatherproof, Explosion Proof, Flameproof Cable Gland.
| Type | E1FPF Double Compression Cable Gland. |
|---|---|
| Cable Types | For all types of IEC Armoured Cables. |
| Application | E1FPF cable glands for armoured cables in Rigid Conduits & Metal Pipes. Female thread on the outlet gives the possibility to connect Pipes and Hoses. It is easy to use and install as it has free rotating Bush for Connection. |
| Option Thread | Metric, NPT |
| Gland Material | Brass (CuZn39Pb3), Stainless Steel (304 or 316L) |
| IP Rating | IP66, IP67 & IP68 |
| Sealing Ring | Double Compression Sealing (Sealing on both outer and inner sheath) |
| Operating Temperature | Silicone Seals : EAC -60⁰C ≤ Ta ≤ +130⁰C |
| Finish | Natural Brass or Nickel Plated. |
| Accessories | PVC Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor/Reducer. |
| EAC Certificate No. | RU C-IN.AA71.B.00212/20 |
| Protection Type | 1Ex e IIC Gb X / 1Ex d IIC Gb X / 2Ex nR IIC Gc X / Ex ta IIIC Da X |

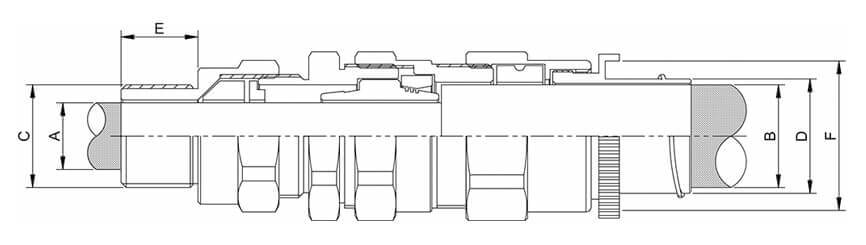

Size Chart / Specification
| ARMOUR RANGE | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CODE | CABLE GLAND SIZE | ENTRY THREAD "C" | THREAD LENGTH "E" | CABLE BEDDING DIAMETER "A" | OVERALL CABLE DIAMETER "B" | GROOVED CONE (X) | STEPPED CONE (W) | M | N | FEMALE CONNECTION THREAD "D" | ||||||||
| METRIC | NPT | METRIC | NPT | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MAX | MAX | METRIC | NPT | BSP | ||
| MM-EX-E1FPF-20S16 | 20S16 | M20 | 1/2" | 17 | 20 | 3.2 | 8.6 | 6.2 | 13.1 | 0.3 | 1 | 0.8 | 1.25 | 25 | 27.5 | M20 | 1/2" | 1/2" |
| MM-EX-E1FPF-20S | 20S | M20 | 1/2" | 17 | 20 | 6.2 | 11.6 | 9.6 | 14.9 | 0.3 | 1 | 0.8 | 1.25 | 25 | 27.5 | M20 | 1/2" | 1/2" |
| MM-EX-E1FPF-20 | 20 | M20 | 1/2" | 17 | 20 | 8.0 | 13.9 | 12.5 | 14.9 | 0.4 | 1 | 0.8 | 1.25 | 31 | 34 | M20 | 1/2" | 1/2" |
| MM-EX-E1FPF-20L | 20 | M20 | 1/2" | 17 | 20 | 8.0 | 13.9 | 12.5 | 19.9 | 0.4 | 1 | 0.8 | 1.25 | 31 | 34 | M25 | 3/4" | 3/4" |
| MM-EX-E1FPF-25S | 25S | M25 | 3/4" | 17 | 21 | 11.2 | 19.6 | 14.0 | 19.9 | 0.4 | 1.2 | 1.25 | 1.6 | 38 | 42 | M25 | 3/4" | 3/4" |
| MM-EX-E1FPF-25 | 25 | M25 | 3/4" | 17 | 21 | 11.2 | 19.6 | 18.3 | 25.6 | 0.4 | 1.2 | 1.25 | 1.6 | 38 | 42 | M32 | 1" | 1" |
| MM-EX-E1FPF-32 | 32 | M32 | 1" | 17 | 26 | 17.1 | 26.0 | 23.7 | 33.4 | 0.4 | 1.2 | 1.6 | 2 | 46 | 51 | M40 | 11/4"' | 11/4" |
| MM-EX-E1FPF-40 | 40 | M40 | 11/4” | 17 | 26 | 22.1 | 31.6 | 28.0 | 39.5 | 0.4 | 1.6 | 1.6 | 2 | 55 | 60 | M50 | 11/2"' | 11/2" |
| MM-EX-E1FPF-50S | 50S | M50 | 11/2" | 17 | 26 | 29.5 | 37.5 | 35.2 | 39.5 | 0.4 | 1.6 | 2 | 2.5 | 61 | 66.5 | M50 | 11/2"' | 11/2" |
| MM-EX-E1FPF-50 | 50 | M50 | 2" | 17 | 27 | 35.6 | 43.1 | 40.5 | 49.5 | 0.6 | 1.6 | 2 | 2.5 | 70 | 76 | M63 | 2" | 2" |
| MM-EX-E1FPF-63S | 63S | M63 | 2" | 17 | 27 | 40.1 | 48.7 | 45.6 | 49.5 | 0.6 | 1.6 | 2 | 2.5 | 75 | 83 | M63 | 2" | 2" |
| MM-EX-E1FPF-63 | 63 | M63 | 21/2" | 17 | 40 | 47.2 | 55.2 | 54.6 | 64.5 | 0.6 | 1.6 | 2 | 2.5 | 80 | 89 | M75 | 21/2" | 21/2" |
- All the dimensions given are in Millimeters (mm)
- Can be also provided in Kit Packing as per requirement
Disclaimer: Product sizes mentioned in the catalogue are for reference purpose only. The actual dimensional details would be available only after request based on the actual requirement.
