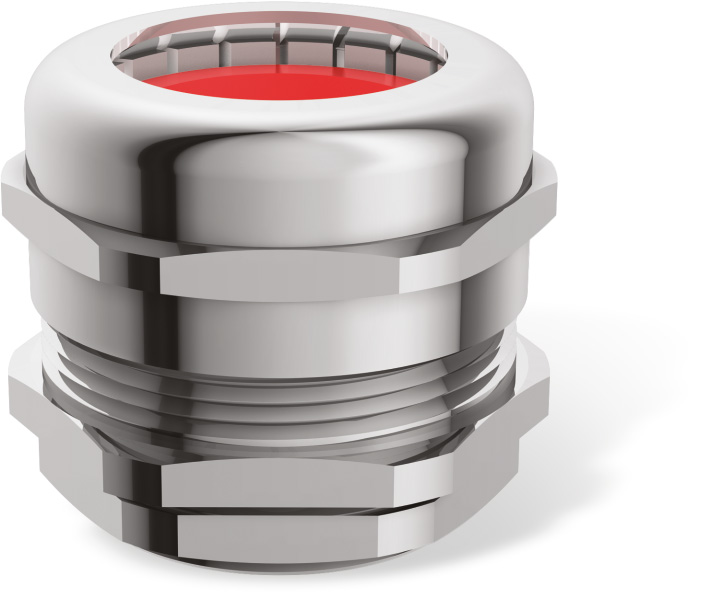

IP 68 Metric Threaded Single Compression Cable Gland
We are India's leading manufacturer, supplier, and exporter of Metric Threaded Single Compression IP 68 Cable Gland, IP68 Universal Cable Gland.
| Type | IP 68 Metric Threaded Single Compression Cable Gland |
|---|---|
| Gland Size | M12 to M75 |
| Gland Material | Brass (CuZn39Pb3), Stainless Steel 316L |
| Thread | Metric |
| IP Rating | IP68 |
| Operating Temperature | Standard Seals -20°C to +90°C. |
| Cable Types | Unarmoured |
| Finish | Nickel Plated |
| Accessories | Matching Accessories available like PVS Shrouds, Lock Nuts & “O” Ring as per requirement |
Size Chart / Specification of IP68 Cable Gland.
| CODE | GLAND SIZE | THREAD SIZE ‘B’ | THREAD LENGTH ‘C’ | ACROSS | CABLE RANGE “A” | ||
|---|---|---|---|---|---|---|---|
| METRIC | METRIC | SHORT | LONG | FLAT | MIN | MAX | |
| MM-M12-6.5 | M12 | M12 | 6 | 10 | 14.00 | 3.00 | 6.50 |
| MM-M12-8 | M12 | M12 | 6 | 10 | 17.00 | 4.00 | 8.00 |
| MM-M16-8 | M16 | M16 | 6 | 10 | 17.00 | 4.00 | 8.00 |
| MM-M16-10 | M16 | M16 | 6 | 10 | 20.00 | 6.00 | 10.00 |
| MM-M20-12 | M20 | M20 | 6.5 | 10 | 22.00 | 8.00 | 12.00 |
| MM-M20-14 | M20 | M20 | 6.5 | 10 | 24.00 | 10.00 | 14.00 |
| MM-M25-14 | M25 | M25 | 7 | 12 | 27.00 | 9.00 | 14.00 |
| MM-M25-16 | M25 | M25 | 7 | 12 | 27.00 | 11.00 | 16.00 |
| MM-M25-18 | M25 | M25 | 7 | 12 | 30.00 | 13.00 | 18.00 |
| MM-M32-20 | M32 | M32 | 8 | 12 | 40.00 | 13.00 | 20.00 |
| MM-M32-25 | M32 | M32 | 8 | 12 | 40.00 | 18.00 | 25.00 |
| MM-M40-23 | M40 | M40 | 8 | 15 | 44.00 | 15.00 | 23.00 |
| MM-M40-28 | M40 | M40 | 8 | 15 | 44.00 | 19.00 | 28.00 |
| MM-M40-32 | M40 | M40 | 8 | 15 | 50.00 | 22.00 | 32.00 |
| MM-M50-29 | M50 | M50 | 9 | 15 | 55.00 | 22.00 | 29.00 |
| MM-M50-35 | M50 | M50 | 9 | 15 | 55.00 | 27.00 | 35.00 |
| MM-M50-38 | M50 | M50 | 9 | 15 | 57.00 | 32.00 | 38.00 |
| MM-M63-35 | M63 | M63 | 10 | 15 | 68.00 | 29.00 | 35.00 |
| MM-M63-44 | M63 | M63 | 10 | 15 | 68.00 | 37.00 | 44.00 |
| MM-M75-53 | M75 | M75 | 15 | 20 | 85.00 | 43.00 | 53.00 |
| MM-M75-60 | M75 | M75 | 15 | 20 | 85.00 | 53.00 | 60.00 |
- All the dimensions given are in Millimeters (mm)
- Can be also provided in Kit Packing as per requirement
Disclaimer: Product sizes mentioned in the catalogue are for reference purpose only. The actual dimensional details would be available only after request based on the actual requirement.
