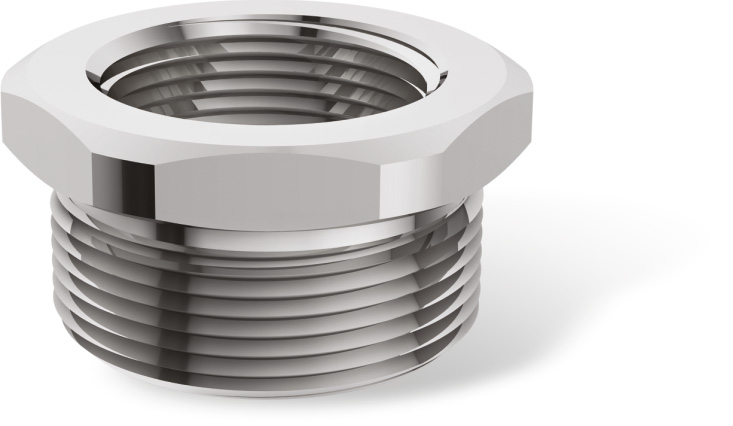

Metric Threaded Reducer For Cable Gland
METRIC TO METRIC REDUCER
| CODE | A | B | L | A/F | G |
|---|---|---|---|---|---|
| RD1M00M | M20X1.5 | M12X1.5 | 21 | 25 | 15 |
| RD1M0M | M20X1.5 | M12X1.5 | 21 | 25 | 15 |
| RD2M00M | M25X1.5 | M12X1.5 | 21 | 30 | 15 |
| RD2M0M | M25X1.5 | M16X1.5 | 21 | 30 | 15 |
| RD2M1M | M25X1.5 | M20X1.5 | 21 | 30 | 15 |
| RD3M0M | M32X1.5 | M16X1.5 | 21 | 36 | 15 |
| RD3M1M | M32X1.5 | M20X1.5 | 21 | 36 | 15 |
| RD3M2M | M32X1.5 | M25X1.5 | 21 | 36 | 15 |
| RD4M1M | M40X1.5 | M20X1.5 | 21 | 45 | 15 |
| RD4M2M | M40X1.5 | M25X1.5 | 21 | 45 | 15 |
| RD4M3M | M40X1.5 | M32X1.5 | 21 | 45 | 15 |
| RD5M1M | M50X1.5 | M20X1.5 | 23 | 55 | 15 |
| RD5M2M | M50X1.5 | M25X1.5 | 23 | 55 | 15 |
| RD5M3M | M50X1.5 | M32X1.5 | 23 | 55 | 15 |
| RD5M4M | M50X1.5 | M40X1.5 | 23 | 55 | 15 |
| RD6M1M | M63X1.5 | M40X1.5 | 23 | 68 | 15 |
| RD6M2M | M63X1.5 | M25X1.5 | 23 | 68 | 15 |
| RD6M3M | M63X1.5 | M32X1.5 | 23 | 68 | 15 |
| RD6M4M | M63X1.5 | M40X1.5 | 23 | 68 | 15 |
| RD6M5M | M63X1.5 | M50X1.5 | 23 | 68 | 15 |
| RD7M2M | M75X1.5 | M25X1.5 | 28 | 80 | 20 |
| RD7M3M | M75X1.5 | M32X1.5 | 28 | 80 | 20 |
| RD7M4M | M75X1.5 | M40X1.5 | 28 | 80 | 20 |
| RD7M5M | M75X1.5 | M50X1.5 | 28 | 80 | 20 |
| RD7M6M | M75X1.5 | M63X1.5 | 28 | 80 | 20 |
| RD8M3M | M90X1.5 | M40X1.5 | 28 | 95 | 20 |
| RD8M4M | M90X1.5 | M40X1.5 | 28 | 95 | 20 |
| RD8M5M | M90X1.5 | M50X1.5 | 28 | 95 | 20 |
| RD8M6M | M90X1.5 | M63X1.5 | 28 | 95 | 20 |
| RD8M7M | M90X1.5 | M75X1.5 | 28 | 95 | 20 |
| RD9M4M | M100X1.5 | M40X1.5 | 30 | 110 | 20 |
| RD9M5M | M100X1.5 | M50X1.5 | 30 | 110 | 20 |
| RD9M6M | M100X1.5 | M63X1.5 | 30 | 110 | 20 |
| RD9M7M | M100X1.5 | M75X1.5 | 30 | 110 | 20 |
| RD9M8M | M100X1.5 | M90X1.5 | 30 | 110 | 20 |
METRIC TO NPT REDUCER
| CODE | A | B | L | A/F | G |
|---|---|---|---|---|---|
| RD1M0N | M20X1.5 | 3/8” NPT | 21 | 25 | 15 |
| RD2M0N | M25X1.5 | 3/8” NPT | 21 | 30 | 15 |
| RD2M1N | M25X1.5 | 1/2” NPT | 21 | 30 | 15 |
| RD3M1N | M32X1.5 | 1/2” NPT | 21 | 36 | 15 |
| RD3M2N | M32X1.5 | 3/4” NPT | 21 | 36 | 15 |
| RD4M1N | M40X1.5 | 1/2” NPT | 21 | 45 | 15 |
| RD4M2N | M40X1.5 | 3/4” NPT | 21 | 45 | 15 |
| RD4M3N | M40X1.5 | 1” NPT | 21 | 45 | 15 |
| RD5M1N | M50X1.5 | 1/2” NPT | 21 | 55 | 15 |
| RD5M2N | M50X1.5 | 3/4” NPT | 21 | 55 | 15 |
| RD5M3N | M50X1.5 | 1” NPT | 21 | 55 | 15 |
| RD5M4N | M50X1.5 | 1.1/4” NPT | 21 | 55 | 15 |
| RD6M2N | M63X1.5 | 3/4” NPT | 21 | 68 | 15 |
| RD6M3N | M63X1.5 | 1” NPT | 21 | 68 | 15 |
| RD6M4N | M63X1.5 | 1.1/4” NPT | 21 | 68 | 15 |
| RD6M5N | M63X1.5 | 1.1/2” NPT | 21 | 68 | 15 |
| RD7M3N | M75X1.5 | 1” NPT | 28 | 80 | 20 |
| RD7M4N | M75X1.5 | 1.1/4” NPT | 28 | 80 | 20 |
| RD7M5N | M75X1.5 | 1.1/2” NPT | 28 | 80 | 20 |
| RD7M6N | M75X1.5 | 2” NPT | 28 | 80 | 20 |
| RD8M3N | M90X1.5 | 1” NPT | 28 | 95 | 20 |
| RD8M4N | M90X1.5 | 1.1/4” NPT | 28 | 95 | 20 |
| RD8M5N | M90X1.5 | 1.1/2” NPT | 28 | 95 | 20 |
| RD8M6N | M90X1.5 | 2” NPT | 28 | 95 | 20 |
| RD8M7N | M90X1.5 | 2.1/2” NPT | 28 | 95 | 20 |
| RD9M4N | M100X1.5 | 1.1/4” NPT | 32 | 110 | 22 |
| RD9M5N | M100X1.5 | 1.1/2” NPT | 32 | 110 | 22 |
| RD9M6N | M100X1.5 | 2” NPT | 32 | 110 | 22 |
| RD9M7N | M100X1.5 | 2.1/2” NPT | 32 | 110 | 22 |
| RD9M8N | M100X1.5 | 3” NPT | 32 | 110 | 22 |
