Hex Reducer Light For Cable Gland

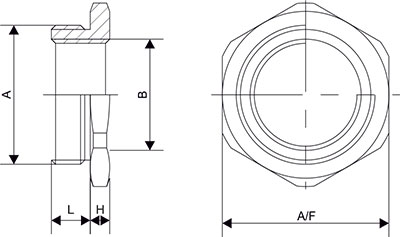

Reducer Light diagram

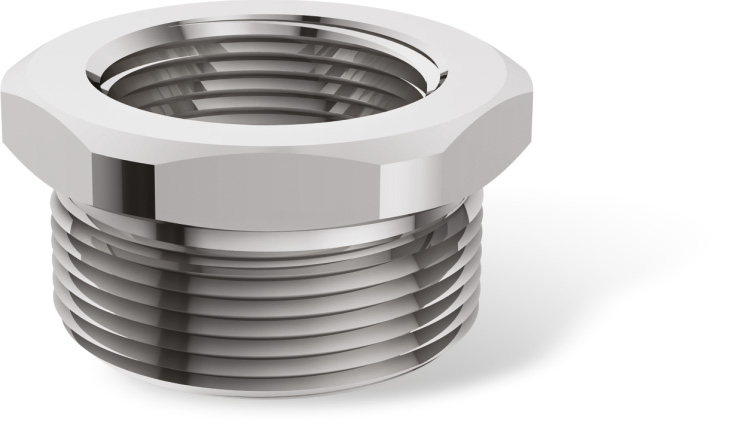

Hex Reducer Light for cable gland

METRIC TO METRIC HEX REDUCER

CODE	A	B	A/F	H	L
REHXM8M6LT	M8x1.25	M6x1	11	8	5
REHXM10M6LT	M10x1.5	M6x1	13	3	5
REHXM10M8LT	M10x1.5	M8x1.25	13	8	5
REHXM12M8LT	M12x1.5	M8x1.25	15	3	5
REHXM12M10LT	M12x1.5	M10x1.5	15	8	5
REHXM16M10LT	M16x1.5	M10x1.5	18	3	5
REHXM16M12LT	M16x1.5	M12x1.5	18	3	5
REHXM20M12LT	M20x1.5	M12x1.5	24	3	6
REHXM20M16LT	M20x1.5	M16x1.5	24	3	6
REHXM25M16LT	M25x1.5	M16x1.5	30	3.5	7
REHXM25M20LT	M25x1.5	M20x1.5	30	3.5	7
REHXM32M20LT	M32x1.5	M20x1.5	36	4	8
REHXM32M25LT	M32x1.5	M25x1.5	36	4	8
REHXM40M25LT	M40x1.5	M25x1.5	46	4.5	8
REHXM40M32LT	M40x1.5	M32x1.5	46	4.5	8
REHXM50M32LT	M50x1.5	M32x1.5	55	5	9
REHXM50M40LT	M50x1.5	M40x1.5	55	5	9
REHXM63M40LT	M63x1.5	M40x1.5	70	5.5	10
REHXM63M50LT	M63x1.5	M50x1.5	70	5.5	10
REHXM75M50LT	M75x1.5	M50x1.5	80	6	11
REHXM75M63LT	M75x1.5	M63x1.5	80	6	11

PG TO PG HEX REDUCER

CODE	A	B	A/F	H	L
REHXPG9PG7LT	Pg9	Pg7	18	3	6.5
REHXPG11PG7LT	Pg11	Pg7	20	3	6.5
REHXPG11PG9LT	Pg11	Pg9	22	3	7
REHXPG13PG7LT	Pg13	Pg7	24	3	7
REHXPG13PG9LT	Pg13	Pg9	24	3	7
REHXPG13PG11LT	Pg13	Pg11	24	3	7
REHXPG16PG9LT	Pg16	Pg9	24	3	7
REHXPG16PG11LT	Pg16	Pg11	24	3	7
REHXPG21PG11LT	Pg21	Pg11	32	3.5	7.5
REHXPG21PG13LT	Pg21	Pg13	32	3.5	7.5
REHXPG21PG16LT	Pg21	Pg16	32	3.5	7.5
REHXPG29PG13LT	Pg29	Pg13	38	4	8
REHXPG29PG16LT	Pg29	Pg16	38	4	8
REHXPG29PG21LT	Pg29	Pg21	38	4	8
REHXPG36PG21LT	Pg36	Pg21	50	4.5	8.5
REHXPG36PG29LT	Pg36	Pg29	50	4.5	8.5
REHXPG42PG29LT	Pg42	Pg29	60	4	11
REHXPG42PG36LT	Pg42	Pg36	60	4	11
REHXPG48PG36LT	Pg48	Pg36	64	4	11

PG TO METRIC HEX REDUCER

CODE	A	B	A/F	H	L
REHXPG7M6LT	Pg7	M6x1	15	3	6
REHXPG7M8LT	Pg7	M8x1.25	15	3	6
REHXPG7M10LT	Pg7	M10x1.5	15	7	6
REHXPG9M6LT	Pg9	M6x1	18	3	6
REHXPG9M8LT	Pg9	M8x1.25	18	3	6
REHXPG9M10LT	Pg9	M10x1.5	18	3	6
REHXPG9M12LT	Pg9	M12x1.5	18	8	6
REHXPG11M6LT	Pg11	M6x1	21	3	6
REHXPG11M8LT	Pg11	M 8×1.25	21	3	6
REHXPG11M10LT	Pg11	M10x1.5	21	3	6
REHXPG11M12LT	Pg11	M12x1.5	21	3	6
REHXPG11M16LT	Pg11	M16x1.5	21	8	6
REHXPG13M12LT	Pg13	M12x1.5	24	3	6
REHXPG13M16LT	Pg13	M16x1.5	24	3	6
REHXPG16M12LT	Pg16	M12x1.5	24	3	6
REHXPG16M16LT	Pg16	M16x1.5	24	3	6
REHXPG21M16LT	Pg21	M16x1.5	30	3.5	7.5
REHXPG21M20LT	Pg21	M20x1.5	30	3.5	7.5
REHXPG29M25LT	Pg29	M25x1.5	38	4	8
REHXPG29M32LT	Pg29	M32x1.5	38	13	8
REHXPG36M32LT	Pg36	M32x1.5	50	4.5	8
REHXPG36M40LT	Pg36	M40x1.5	50	4.5	8
REHXPG42M32LT	Pg42	M32x1.5	55	5	10
REHXPG42M40LT	Pg42	M40x1.5	55	5	10
REHXPG42M50LT	Pg42	M50x1.5	55	15	10
REHXPG48M40LT	Pg48	M40x1.5	64	5.5	11
REHXPG48M50LT	Pg48	M50x1.5	64	5.5	11

BSP TO PG HEX REDUCER

CODE	A	B	A/F	H	L
REHXG0PG7LT	G 3/8″	Pg7	20	3	10
REHXG1PG9LT	G 1/2″	Pg9	24	3	9.5
REHXG2PG9LT	G 3/4″	Pg9	30	3.5	11
REHXG2PG11LT	G 3/4″	Pg11	30	3.5	11
REHXG2PG16LT	G 3/4″	Pg16	32	3.5	11
REHXG3PG21LT	G 1″	Pg21	38	3.5	11
REHXG4PG29LT	G 1 1/4″	Pg29	50	5	11
REHXG6PG36LT	G 2″	Pg36	64	5	11
REHXG6PG42LT	G 2″	Pg42	64	5	11

METRIC TO PG HEX REDUCER

CODE	A	B	A/F	H	L
REHXM16PG7LT	M16x1.5	Pg7	20	3	5
REHXM20PG7LT	M20x1.5	Pg7	24	3	6
REHXM20PG9LT	M20x1.5	Pg9	24	3	6
REHXM20PG11LT	M20x1.5	Pg11	24	10	6
REHXM25PG9LT	M25x1.5	Pg9	30	3.5	7
REHXM25PG11LT	M25x1.5	Pg11	30	3.5	7
REHXM25PG13LT	M25x1.5	Pg13	30	3.8	7
REHXM25PG16LT	M25x1.5	Pg16	30	15	7
REHXM32PG21LT	M32x1.5	Pg21	38	16	8
REHXM40PG29LT	M40x1.5	Pg29	45	16	8
REHXM50PG29LT	M50x1.5	Pg29	55	4	9
REHXM63PG36LT	M63x1.5	Pg36	70	5.5	10

NPT TO PG HEX REDUCER

CODE	A	B	A/F	H	L
REHXN1PG9LT	1/2″NPT	Pg9	22	4.5	20
REHXN2PG11LT	3/4″NPT	Pg11	30	4	20
REHXN2PG13LT	3/4″NPT	Pg13	30	4	20
REHXN3PG16LT	1″NPT	Pg16	36	6	26
