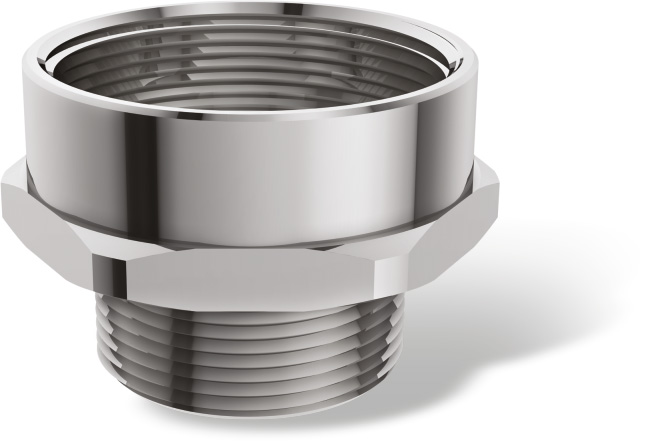

Explosionproof Adaptors For Cable Gland
| IP Rating | IP68 |
| Certificates | IECEx PRE 20.0123X |
| ATEX | Presafe 20 ATEX 24571X |
| EAC | RU C-IN.AA71.B.00212/20 |
| Thread Type | Metric and NPT |
| Protection Type | Ex d, Ex e, Ex t |
| Material | Brass (CuZn39Pb3), Stainless Steel (SS304/SS316L) |
| Ambient Temperature | IECEx/ATEX : -55° C < Ta < +160° C EAC: -60° C < Ta < +130° C |
METRIC TO METRIC EX-PROOF ADAPTOR

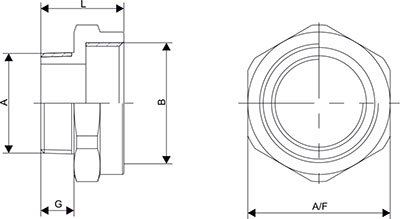

| CODE | A | B | L | G | A/F |
| AD0M1M | M16X1.5 | M20X1.5 | 34 | 16 | 25 |
| AD0M2M | M16X1.5 | M25X1.5 | 34 | 16 | 30 |
| AD1M1M | M20X1.5 | M20X1.5 | 34 | 16 | 25 |
| AD1M2M | M20X1.5 | M25X1.5 | 34 | 16 | 30 |
| AD1M3M | M20X1.5 | M32X1.5 | 34 | 16 | 36 |
| AD2M2M | M25X1.5 | M25X1.5 | 34 | 16 | 30 |
| AD2M3M | M25X1.5 | M32X1.5 | 34 | 16 | 36 |
| AD2M4M | M25X1.5 | M40X1.5 | 34 | 16 | 45 |
| AD2M5M | M25X1.5 | M50X1.5 | 34 | 16 | 55 |
| AD3M3M | M32X1.5 | M32X1.5 | 34 | 16 | 36 |
| AD3M4M | M32X1.5 | M40X1.5 | 34 | 16 | 45 |
| AD3M5M | M32X1.5 | M50X1.5 | 34 | 16 | 55 |
| AD4M4M | M40X1.5 | M40X1.5 | 34 | 16 | 45 |
| AD4M5M | M40X1.5 | M50X1.5 | 34 | 16 | 55 |
| AD4M6M | M40X1.5 | M63X1.5 | 34 | 16 | 68 |
| AD4M7M | M40X1.5 | M75X1.5 | 39 | 16 | 80 |
| AD5M5M | M50X1.5 | M50X1.5 | 34 | 16 | 55 |
| AD5M6M | M50X1.5 | M63X1.5 | 36 | 16 | 68 |
| AD5M7M | M50X1.5 | M75X1.5 | 39 | 16 | 80 |
| AD6M6M | M63X1.5 | M63X1.5 | 34 | 16 | 68 |
| AD6M7M | M63X1.5 | M75X1.5 | 39 | 16 | 80 |
| AD6M8M | M63X1.5 | M90X1.5 | 39 | 16 | 95 |
| AD7M7M | M75X1.5 | M75X1.5 | 44 | 20 | 80 |
| AD7M8M | M75X1.5 | M90X1.5 | 44 | 20 | 95 |
| AD7M9M | M75X1.5 | M100X1.5 | 44 | 20 | 105 |
| AD8M8M | M90X1.5 | M90X1.5 | 44 | 20 | 95 |
METRIC TO NPT EX-PROOF ADAPTOR
| CODE | A | B | L | G | A/F |
| AD0M0N | M16X1.5 | 3/8" NPT | 34 | 16 | 20 |
| AD0M1N | M16X1.5 | 1/2" NPT | 37 | 16 | 25 |
| AD0M2N | M16X1.5 | 3/4" NPT | 37 | 16 | 30 |
| AD1M1N | M20X1.5 | 1/2" NPT | 37 | 16 | 25 |
| AD1M2N | M20X1.5 | 3/4" NPT | 37 | 16 | 30 |
| AD1M3N | M20X1.5 | 1" NPT | 41 | 16 | 36 |
| AD2M2N | M25X1.5 | 3/4" NPT | 37 | 16 | 30 |
| AD2M3N | M25X1.5 | 1" NPT | 41 | 16 | 36 |
| AD2M4N | M25X1.5 | 1.1/4" NPT | 41 | 16 | 45 |
| AD3M3N | M32X1.5 | 1" NPT | 41 | 16 | 36 |
| AD3M4N | M32X1.5 | 1.1/4" NPT | 41 | 16 | 45 |
| AD3M5N | M32X1.5 | 1.1/2" NPT | 43 | 16 | 55 |
| AD4M4N | M40X1.5 | 1.1/4" NPT | 41 | 16 | 45 |
| AD4M5N | M40X1.5 | 1.1/2" NPT | 43 | 16 | 55 |
| AD4M6N | M40X1.5 | 2" NPT | 43 | 16 | 65 |
| AD5M5N | M50X1.5 | 1.1/2" NPT | 43 | 16 | 55 |
| AD5M6N | M50X1.5 | 2" NPT | 43 | 16 | 65 |
| AD5M7N | M50X1.5 | 2.1/2" NPT | 47 | 16 | 80 |
| AD6M6N | M63X1.5 | 2" NPT | 43 | 16 | 68 |
| AD6M7N | M63X1.5 | 2.1/2" NPT | 47 | 16 | 80 |
| AD6M8N | M63X1.5 | 3" NPT | 47 | 16 | 95 |
| AD7M7N | M75X1.5 | 2.1/2" NPT | 52 | 20 | 80 |
| AD7M8N | M75X1.5 | 3" NPT | 52 | 20 | 95 |
| AD7M9N | M75X1.5 | 4" NPT | 54 | 20 | 120 |
| AD8M8N | M90X1.5 | 3" NPT | 52 | 20 | 95 |
| AD8M9N | M90X1.5 | 4" NPT | 54 | 20 | 120 |
| AD9M9N | M100X1.5 | 4" NPT | 54 | 20 | 120 |
NPT TO NPT EX-PROOF ADAPTOR
| CODE | A | B | L | G | A/F |
| AD0N1N | 3/8" NPT | 1/2" NPT | 37 | 16 | 25 |
| AD0N2N | 3/8" NPT | 3/4" NPT | 42 | 21 | 30 |
| AD1N1N | 1/2" NPT | 1/2" NPT | 42 | 21 | 25 |
| AD1N2N | 1/2" NPT | 3/4" NPT | 42 | 21 | 30 |
| AD2N2N | 3/4" NPT | 3/4" NPT | 42 | 21 | 30 |
| AD2N3N | 3/4" NPT | 1" NPT | 46 | 21 | 36 |
| AD3N3N | 1" NPT | 1" NPT | 51 | 26 | 36 |
| AD3N4N | 1" NPT | 1.1/4" NPT | 51 | 26 | 45 |
| AD3N5N | 1" NPT | 1.1/2" NPT | 53 | 26 | 50 |
| AD4N4N | 1.1/4" NPT | 1.1/4" NPT | 51 | 26 | 45 |
| AD4N5N | 1.1/4" NPT | 1.1/2" NPT | 53 | 26 | 50 |
| AD4N6N | 1.1/4" NPT | 2" NPT | 53 | 26 | 65 |
| AD5N5N | 1.1/2" NPT | 1.1/2" NPT | 54 | 27 | 50 |
| AD5N6N | 1.1/2" NPT | 2" NPT | 54 | 27 | 65 |
| AD5N7N | 1.1/2" NPT | 2.1/2" NPT | 58 | 27 | 80 |
| AD6N6N | 2" NPT | 2" NPT | 55 | 28 | 65 |
| AD6N7N | 2" NPT | 2.1/2" NPT | 59 | 28 | 80 |
| AD6N8N | 2" NPT | 3" NPT | 59 | 28 | 95 |
| AD7N7N | 2.1/2" NPT | 2.1/2" NPT | 73 | 41 | 80 |
| AD7N8N | 2.1/2" NPT | 3" NPT | 73 | 41 | 95 |
| AD7N9N | 2.1/2" NPT | 4" NPT | 73 | 41 | 120 |
| AD8N8N | 3" NPT | 3" NPT | 74 | 42 | 95 |
| AD8N9N | 3" NPT | 4" NPT | 74 | 42 | 120 |
NPT TO METRIC EX-PROOF ADAPTOR
| CODE | A | B | L | G | A/F |
| AD0N0M | 3/8" NPT | M16X1.5 | 33 | 16 | 25 |
| AD0N1M | 3/8" NPT | M20X1.5 | 33 | 16 | 25 |
| AD1N1M | 1/2" NPT | M20X1.5 | 38 | 21 | 25 |
| AD1N2M | 1/2" NPT | M25X1.5 | 39 | 21 | 30 |
| AD1N3M | 1/2" NPT | M32X1.5 | 39 | 21 | 36 |
| AD2N2M | 3/4" NPT | M25X1.5 | 39 | 21 | 30 |
| AD2N3M | 3/4" NPT | M32X1.5 | 39 | 21 | 36 |
| AD2N4M | 3/4" NPT | M40X1.5 | 39 | 21 | 45 |
| AD3N3M | 1" NPT | M32X1.5 | 44 | 26 | 36 |
| AD3N4M | 1" NPT | M40X1.5 | 44 | 26 | 45 |
| AD3N5M | 1" NPT | M50X1.5 | 44 | 26 | 55 |
| AD4N4M | 1.1/4" NPT | M40X1.5 | 44 | 26 | 45 |
| AD4N5M | 1.1/4" NPT | M50X1.5 | 44 | 26 | 55 |
| AD4N6M | 1.1/4" NPT | M63X1.5 | 44 | 26 | 68 |
| AD5N5M | 1.1/2" NPT | M50X1.5 | 45 | 27 | 55 |
| AD5N6M | 1.1/2" NPT | M63X1.5 | 45 | 27 | 68 |
| AD5N7M | 1.1/2" NPT | M75X1.5 | 50 | 27 | 80 |
| AD6N6M | 2" NPT | M63X1.5 | 48 | 28 | 68 |
| AD6N7M | 2" NPT | M75X1.5 | 51 | 28 | 80 |
| AD6N8M | 2" NPT | M90X1.5 | 51 | 28 | 95 |
| AD7N7M | 2.1/2" NPT | M75X1.5 | 65 | 41 | 80 |
| AD7N8M | 2.1/2" NPT | M90X1.5 | 65 | 41 | 95 |
| AD7N9M | 2.1/2" NPT | Ml 00X1.5 | 65 | 41 | 105 |
| AD8N8M | 3" NPT | M90X1.5 | 66 | 42 | 95 |
| AD8N9M | 3" NPT | M100X1.5 | 66 | 42 | 105 |
| AD9N9M | 4" NPT | Ml 00X1.5 | 70 | 45 | 120 |
