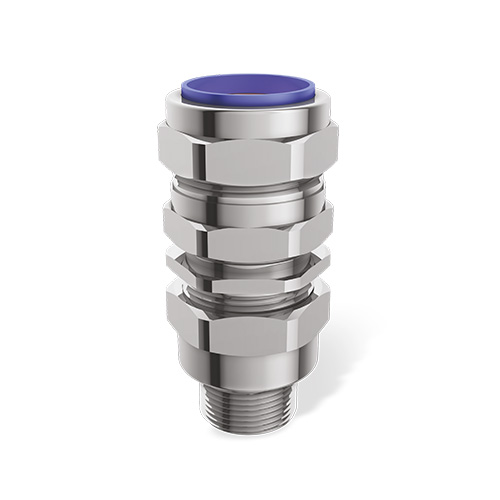

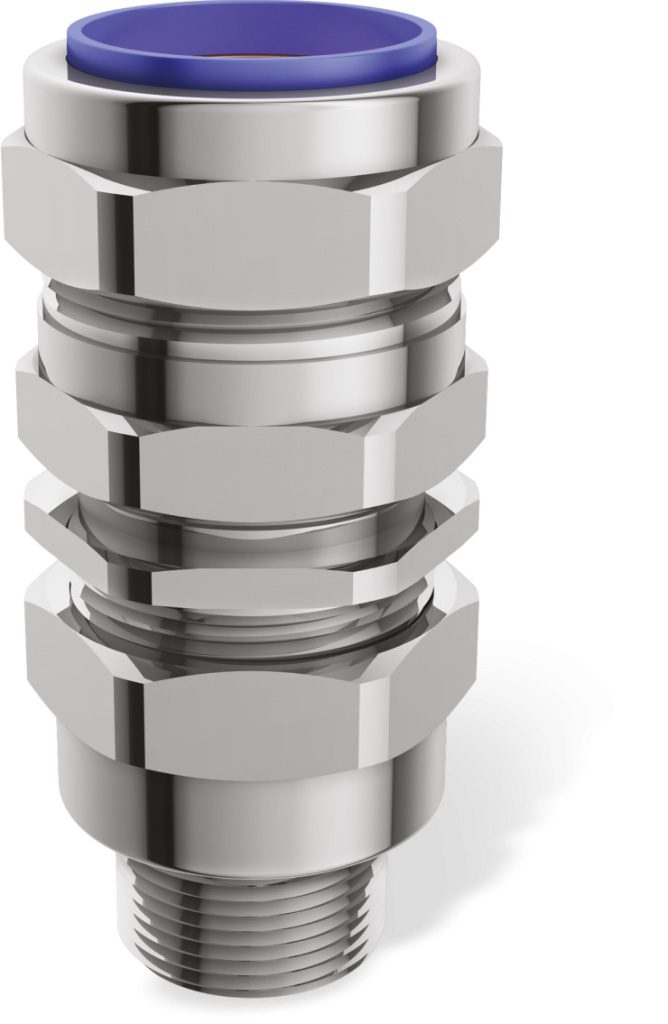

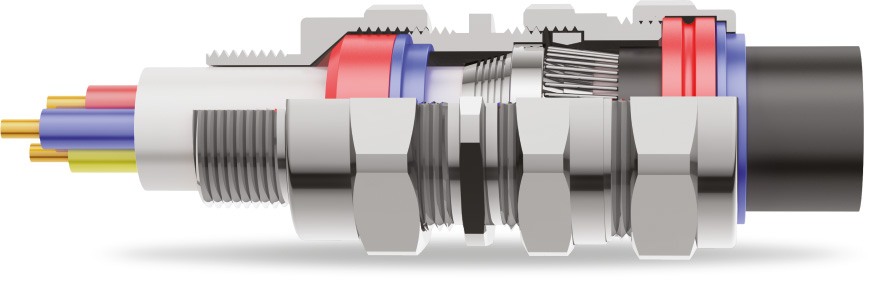

E1FX Type Double Compression Cable Gland
We are India's leading manufacturer, supplier, and exporter of E1FX Cable Glands, E1FX Type Double Compression Cable Gland.
| Type | E1FX Double Compression Cable Gland |
|---|---|
| Cable Types | Screened Flexible Wire Braid, Wire Armour (PWA), Steel Tape Armour (STA), Wire Braid Armour, Aluminium Strip Armour (ASA) |
| Application | For use with all types Braid, Strip and type armour for indoor and outdoor application. Also it provides IP66 seal on the outer sheath. |
| Option Thread | Metric , NPT BSP ,BSPT |
| Gland Material | Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082) |
| IP Rating | IP66 & IP67 |
| Sealing Method | Double compression sealing (sealing on both outer and inner sheath) |
| Operating Temperature | Standard Seals (Nitrile): -20°C to 80°C.
on request (silicone) :-60°C to +180°C. |
| Finish | Natural Brass or Nickel Plated or Electroless Nickel Plated |

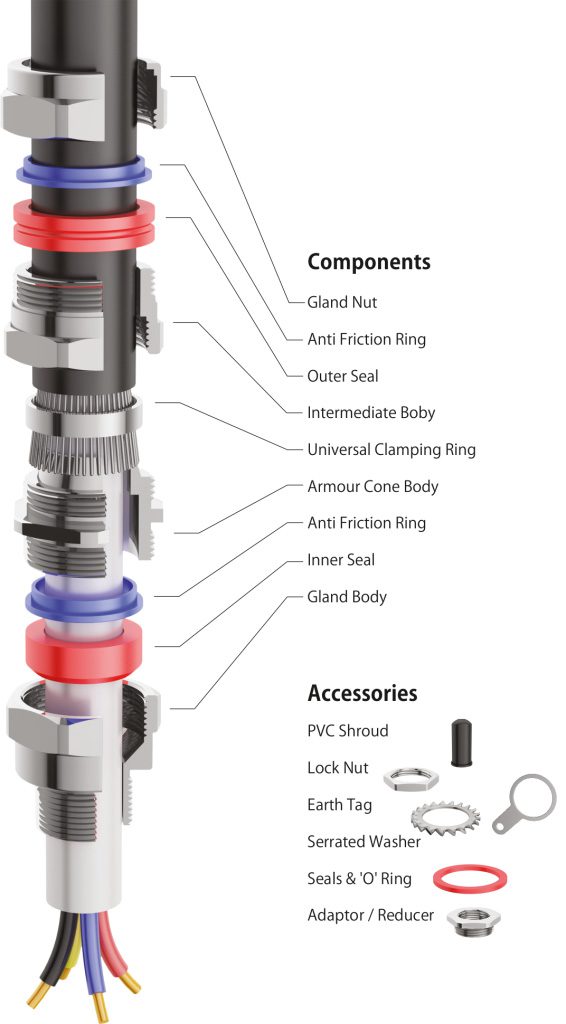

| Accessories | PVC/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer. |
| EAC Certificate No. | RU C-IN.AA71.B.00212/20 |
| Protection Type | 1Ex e IIC Gb X / 1Ex d IIC Gb X /
2Ex nR IIC Gc X / Ex ta IIIC Da X |

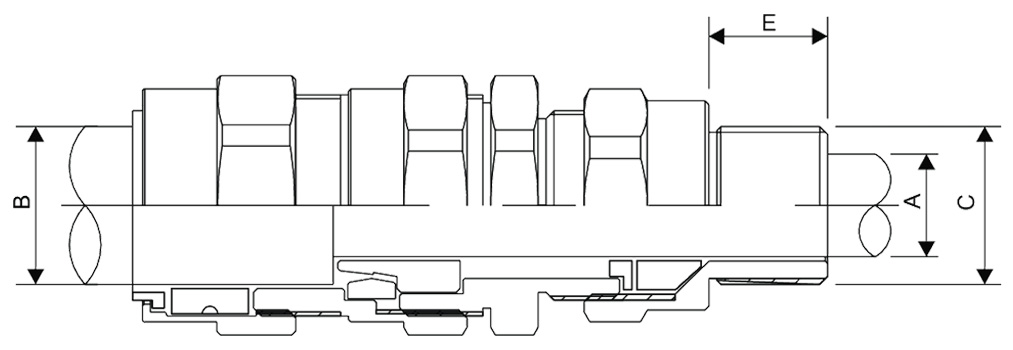

AVAILABLE ENTRY THREAD “C” (ALTERNATE METRIC THREAD LENGTHS AVAILABLE)
Size Chart / Specification
| ARMOUR RANGE | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CODE | CABLE GLAND SIZE | ENTRY THREAD "C" | THREAD LENGTH "E" | CABLE BEDDING DIAMETER "A" | OVERALL CABLE DIAMETER "B" | GROOVED CONE (X) | M | N | |||||
| METRIC | NPT | METRIC | NPT | MIN | MAX | MIN | MAX | MIN | MAX | MAX , | MAX | ||
| MM-EX-E1FX-20S16 | 20S16 | M20 | 1/2" | 17 | 20 | 3.2 | 8.6 | 6.2 | 13.1 | 0.3 | 1 | 25 | 27.5 |
| MM-EX-E1FX-20S | 20S | M20 | 1/2" | 17 | 20 | 6.2 | 11.6 | 9.6 | 15.5 | 0.3 | 1 | 25 | 27.5 |
| MM-EX-E1FX-20 | 20 | M20 | 1/2" | 17 | 20 | 8.0 | 13.9 | 12.5 | 20.9 | 0.4 | 1 | 31 | 34 |
| MM-EX-E1FX-25S | 25S | M25 | 3/4" | 17 | 21 | 11.2 | 19.6 | 14.0 | 21.5 | 0.4 | 1.2 | 38 | 42 |
| MM-EX-E1FX-25 | 25 | M25 | 3/4" | 17 | 21 | 11.2 | 19.6 | 18.3 | 25.6 | 0.4 | 1.2 | 38 | 42 |
| MM-EX-E1FX-32 | 32 | M32 | 1" | 17 | 26 | 17.1 | 26 | 23.7 | 33.4 | 0.4 | 1.2 | 46 | 51 |
| MM-EX-E1FX-40 | 40 | M40 | 11/4" | 17 | 26 | 22.1 | 31.6 | 28.0 | 39.5 | 0.4 | 1.6 | 55 | 60 |
| MM-EX-E1FX-50S | 50S | M50 | 11/2" | 17 | 26 | 29.5 | 37.5 | 35.2 | 46.0 | 0.4 | 1.6 | 61 | 66.5 |
| MM-EX-E1FX-50 | 50 | M50 | 2" | 17 | 27 | 35.6 | 43.1 | 40.5 | 52.4 | 0.6 | 1.6 | 70 | 76 |
| MM-EX-E1FX-63S | 63S | M63 | 2" | 17 | 27 | 40.1 | 48.7 | 45.6 | 58.5 | 0.6 | 1.6 | 75 | 83 |
| MM-EX-E1FX-63 | 63 | M63 | 21/2" | 17 | 40 | 47.2 | 55.2 | 54.6 | 64.5 | 0.6 | 1.6 | 80 | 89 |
| MM-EX-E1FX-75S | 75S | M75 | 21/2" | 17 | 40 | 52.8 | 61.2 | 59.0 | 70.4 | 0.6 | 1.6 | 91 | 98.5 |
| MM-EX-E1FX-75 | 75 | M75 | 3" | 17 | 42 | 59.1 | 67.2 | 66.7 | 76.3 | 0.6 | 1.6 | 99.5 | 109 |
| MM-EX-E1FX-90 | 90 | M90 | 31/2" | 24 | 44 | 66.6 | 79.2 | 76.2 | 87.2 | 0.8 | 1.6 | 114.5 | 124 |
