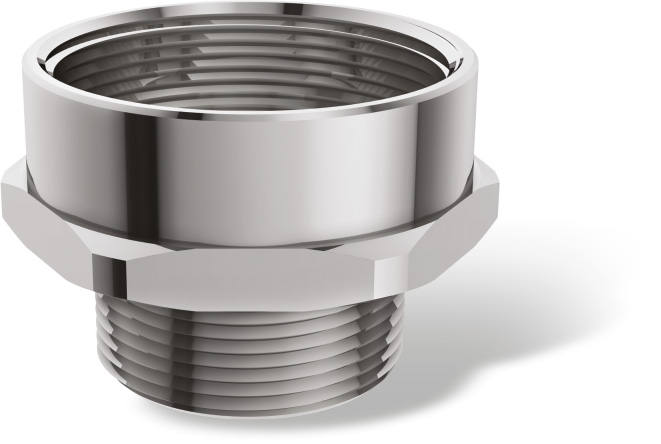

Adaptor NPT For Cable Gland

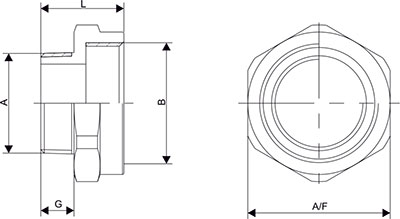

Adaptor NPT Diagram

NPT Threads Adaptor For Cable Gland | Cable Gland Accessories

NPT TO NPT ADAPTOR

CODE	A	B	L	G	A/F
AD0N1N	3/8” NPT	1/2” NPT	36	15	25
AD0N2N	3/8” NPT	3/4” NPT	36	15	30
AD1N1N	1/2” NPT	1/2” NPT	39	18	25
AD1N2N	1/2” NPT	3/4” NPT	39	18	30
AD2N2N	3/4” NPT	3/4” NPT	39	18	30
AD2N3N	3/4” NPT	1”NPT	43	18	36
AD3N3N	1” NPT	1” NPT	47	22	36
AD3N4N	1” NPT	1.1/4” NPT	47	22	45
AD3N5N	1” NPT	1.1/2” NPT	49	22	50
AD4N4N	1.1/4” NPT	1.1/4” NPT	47	22	45
AD4N5N	1.1/4” NPT	1.1/2” NPT	49	22	50
AD4N6N	1.1/4” NPT	2” NPT	49	22	65
AD5N5N	1.1/2” NPT	1.1/2” NPT	51	24	50
AD5N6N	1.1/2” NPT	2” NPT	51	24	65
AD5N7N	1.1/2”NPT	2.1/2”NPT	55	24	75
AD6N6N	2” NPT	2” NPT	51	24	65
AD6N7N	2” NPT	2.1/2” NPT	55	24	75
AD6N8N	2” NPT	3” NPT	55	24	90
AD7N7N	2.1/2”NPT	2.1/2”NPT	59	28	75
AD7N8N	2.1/2” NPT	3” NPT	59	28	90
AD7N9N	2.1/2” NPT	4” NPT	59	28	115
AD8N8N	3” NPT	3” NPT	59	28	90
AD8N9N	3” NPT	4” NPT	59	28	115

NPT TO METRIC ADAPTOR

CODE	A	B	L	G	A/F
AD0N0M	3/8” NPT	M16X1.5	33	15	25
AD0N1M	3/8” NPT	M20X1.5	33	15	25
AD1N1M	1/2” NPT	M20X1.5	36	18	25
AD1N2M	1/2” NPT	M25X1.5	36	18	30
AD1N3M	1/2” NPT	M32X1.5	36	18	36
AD2N2M	3/4” NPT	M25X1.5	36	18	30
AD2N3M	3/4” NPT	M32X1.5	36	18	36
AD2N4M	3/4” NPT	M40X1.5	36	18	45
AD3N3M	1” NPT	M32X1.5	40	22	36
AD3N4M	1” NPT	M40X1.5	40	22	45
AD3N5M	1” NPT	M50X1.5	40	22	55
AD4N4M	1.1/4” NPT	M40X1.5	40	22	45
AD4N5M	1.1/4” NPT	M50X1.5	40	22	55
AD4N6M	1.1/4” NPT	M63X1.5	40	22	68
AD5N5M	1.1/2” NPT	M50X1.5	42	24	55
AD5N6M	1.1/2” NPT	M63X1.5	42	24	68
AD5N7M	1.1/2” NPT	M75X1.5	47	24	80
AD6N6M	2” NPT	M63X1.5	42	24	68
AD6N7M	2” NPT	M75X1.5	47	24	80
AD6N8M	2” NPT	M90X1.5	47	24	95
AD7N7M	2.1/2” NPT	M75X1.5	51	28	80
AD7N8M	2.1/2” NPT	M90X1.5	51	28	95
AD7N9M	2.1/2” NPT	M100X1.5	51	28	105
AD8N8M	3” NPT	M90X1.5	51	28	95
AD8N9M	3” NPT	M100X1.5	51	28	105
AD9N9M	4” NPT	M100X1.5	53	30	120
