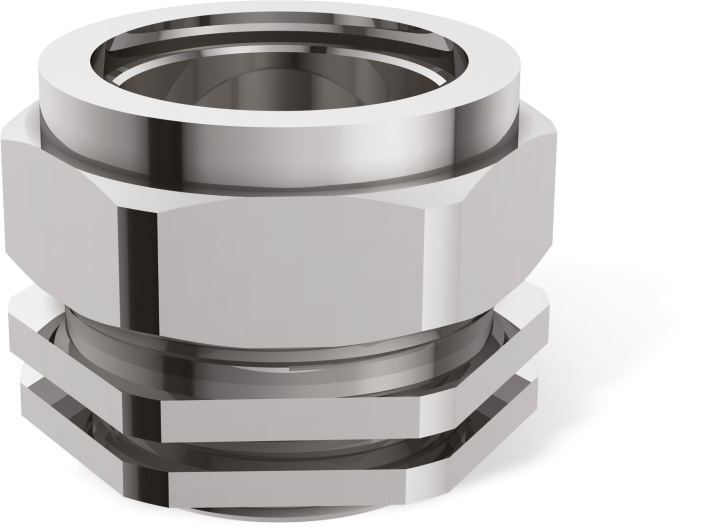

BWR Cable Glands
We are India's leading manufacturer, supplier, and exporter of BWR Cable Glands.
| Type | BWR Armoured Cable Gland |
|---|---|
| Cable Types | Steel Wire Armour (SWA) Aluminium Wire Armour (AWA) |
| Application | Brass Gland for dry indoor use with SWA cables. No loose parts, allows easy installation.
Two part armour lock |
| Gland Material | Brass (CuZn39Pb3) |
| IP Rating | IP30 |
| Operating Temperature | -80°C to + 600°C |
| Finish | Natural Brass or Nickel Plated or Electroless Nickel Plated |

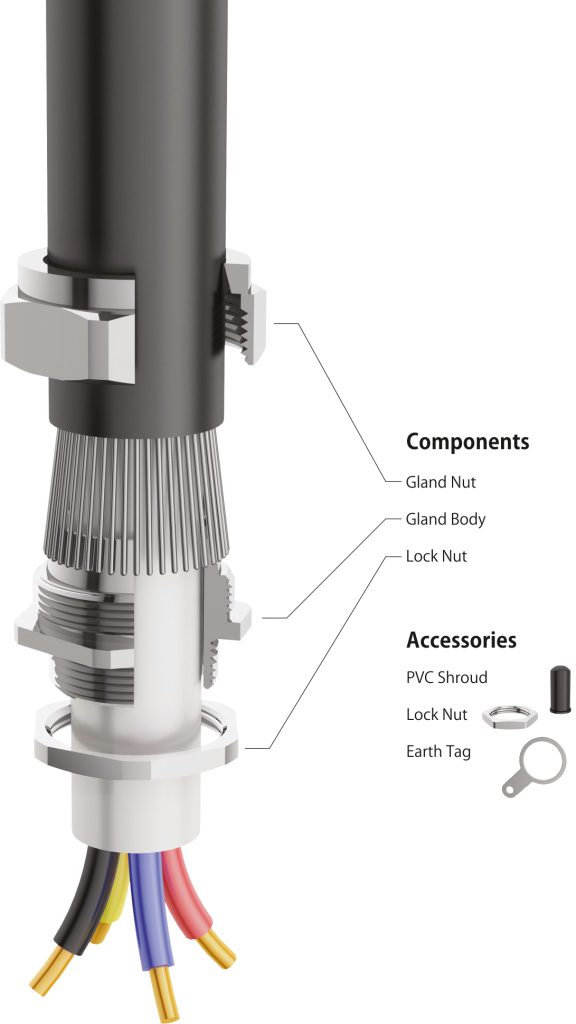

| Accessories | PVC Shrouds, Lock Nut, Earth Tag |

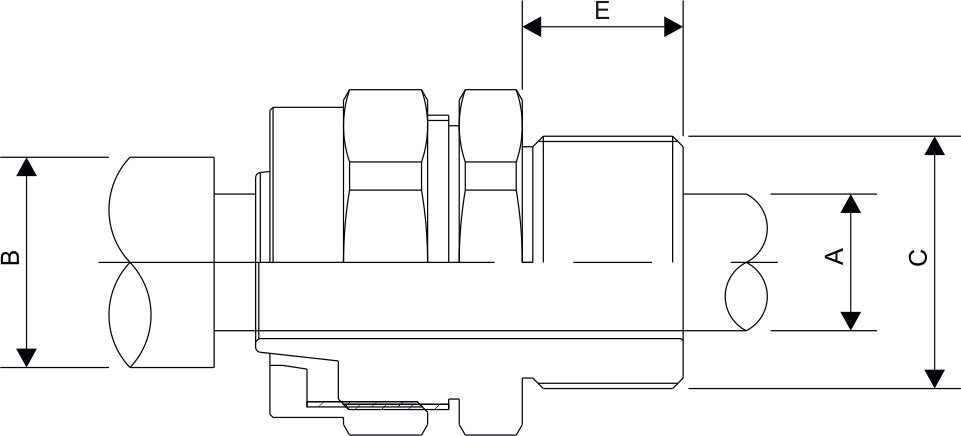

Size Chart / Specification
| CODE | GLAND SIZE | THREAD SIZE
METRIC ‘C’ |
THREAD
LENGTH ‘E’ |
ACROSS
FLAT |
CABLE RANGE
‘A’ |
CABLE RANGE
‘B’ |
|---|---|---|---|---|---|---|
| MM-BWR-20S | 20S | M20 | 10 | 22.00 | 11.50 | 16.00 |
| MM-BWR-20L | 20L | M20 | 10 | 27.00 | 14.00 | 21.20 |
| MM-BWR-25 | 25 | M25 | 10 | 35.00 | 20.00 | 27.00 |
| MM-BWR-32 | 32 | M32 | 10 | 41.00 | 26.20 | 33.50 |
| MM-BWR-40 | 40 | M40 | 15 | 51.50 | 32.50 | 40.00 |
| MM-BWR-50 | 50 | M50 | 15 | 64.50 | 44.40 | 52.50 |
| MM-BWR-63 | 63 | M63 | 15 | 80.00 | 55.40 | 65.50 |
| MM-BWR-75 | 75 | M75 | 15 | 94.50 | 69.50 | 79.00 |
- All the dimensions given are in Millimeters (mm)
- Can be also provided in Kit Packing as per requirement
Disclaimer: Product sizes mentioned in the catalogue are for reference purpose only. The actual dimensional details would be available only after request based on the actual requirement.
