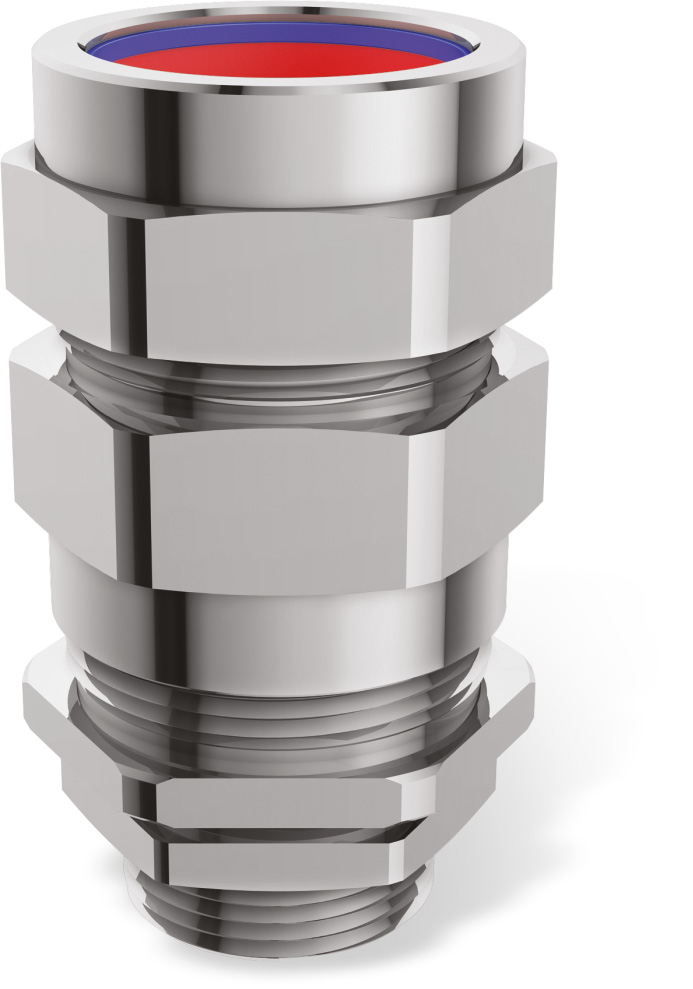

3PT Single Compression CW Cable Glands
We are India's leading manufacturer, supplier, and exporter of Single Compression CW Cable Glands.
| Type | CW 3PT Single Compression Cable Gland |
|---|---|
| Cable Types | Single Wire Armour (SWA) Aluminium Wire Armour (AWA) |
| Application | CW glands are suitable for indoor and outdoor use with all types of steel wire armoured cables outer seal grips sheath to achieve weatherproof seal |
| IP Rating | IP54 |
| Option Thread | Metric & NPT |
| Gland Material | Brass (CuZn39Pb3) |
| Rubber Seals | Nitrile (NBR) |
| Operating Temperature | (Nitrile): -20°C to +80°C |
| Finish | Natural Brass or Nickel Plated or Electroless Nickel Plated |

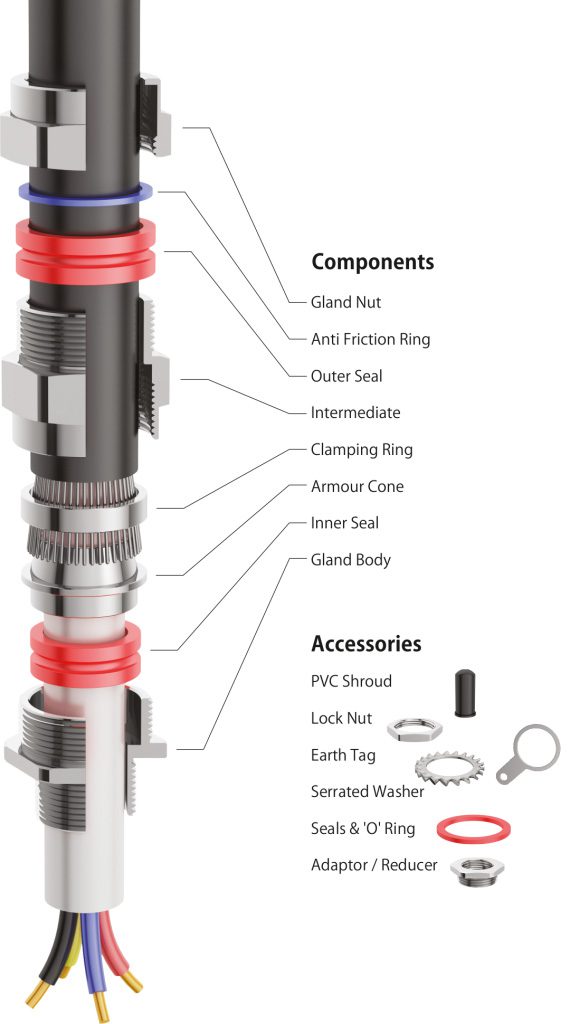

| Accessories | PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer |

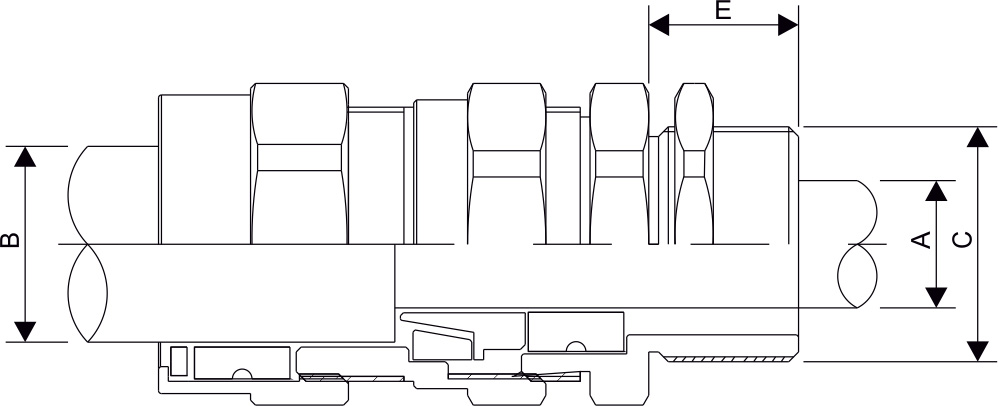

Size Chart / Specification
| CODE | GLAND SIZE | THREAD SIZE
NPT ‘A’ |
THREAD SIZE
METRIC ‘A’ |
THREAD
LENGTH ‘C’ |
CABLE RANGE ‘B’ | |
|---|---|---|---|---|---|---|
| MIN | MAX | |||||
| MM-CW320S | 20S | 1/2” | M20 | 10 | 11.50 | 15.50 |
| MM-CW320L | 20L | 1/2” | M20 | 10 | 14.00 | 20.50 |
| MM-CW325S | 25S | 3/4” | M25 | 10 | 18.00 | 24.00 |
| MM-CW325L | 25L | 3/4” | M25 | 10 | 20.00 | 27.20 |
| MM-CW332S | 32S | 1” | M32 | 15 | 26.30 | 33.50 |
| MM-CW332L | 32L | 1” | M32 | 15 | 26.30 | 33.50 |
| MM-CW340S | 40S | 1.1/4” | M40 | 15 | 31.50 | 39.50 |
| MM-CW340L | 40L | 1.1/4” | M40 | 15 | 32.00 | 40.00 |
| MM-CW350S | 50S | 1.1/2” | M50 | 15 | 38.20 | 46.30 |
| MM-CW350L | 50L | 1.1/2” | M50 | 15 | 44.00 | 52.60 |
| MM-CW363S | 63S | 2” | M63 | 15 | 50.10 | 59.00 |
| MM-CW363L | 63L | 2” | M63 | 15 | 56.00 | 65.30 |
| MM-CW375S | 75S | 21.2” | M75 | 15 | 62.00 | 71.60 |
| MM-CW375L | 75L | 21.2” | M75 | 15 | 68.00 | 78.00 |
| MM-CW390S | 90S | 3” | M90 | 20 | 80.50 | 91.00 |
| MM-CW390L | 90L | 3” | M90 | 20 | 80.50 | 91.00 |
- All the dimensions given are in Millimeters (mm)
- Can be also provided in Kit Packing as per requirement
Disclaimer: Product sizes mentioned in the catalogue are for reference purpose only. The actual dimensional details would be available only after request based on the actual requirement.
