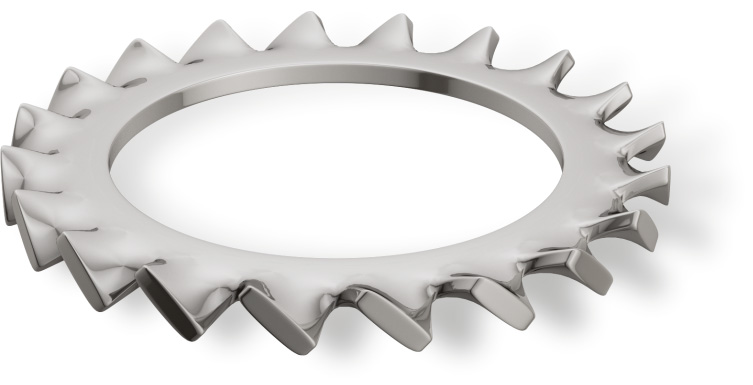

Serrated Washer External For Cable Gland
| APPLICATION | PROVIDES A STAR WASHER BOND ATTACHMENT FOR CABLE GLAND |
|---|---|
| MATERIAL & FINISH | STAR WASHERS ARE MANUFACTURED IN STAINLESS STEEL 316 (STANDARD),
BRASS (OPTIONAL), GALVANIZED STEEL (OPTIONAL). |

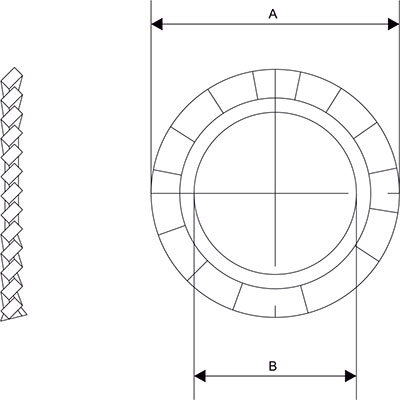

| METRIC CODE | SIZE | A | B |
|---|---|---|---|
| MM-SW-M16E | M16 | 26.00 | 17.00 |
| MM-SW-M20E | M20 | 33.00 | 21.00 |
| MM-SW-M25E | M25 | 38.00 | 25.00 |
| MM-SW-M32E | M32 | 48.00 | 33.00 |
| MM-SW-M40E | M40 | 58.00 | 40.00 |
| MM-SW-M50E | M50 | 66.00 | 50.00 |
| MM-SW-M63E | M63 | 80.00 | 63.00 |
| MM-SW-M75E | M75 | 95.00 | 75.00 |
| MM-SW-M90E | M90 | 110.00 | 90.00 |
| MM-SW-M100E | M100 | 130.00 | 100.00 |
