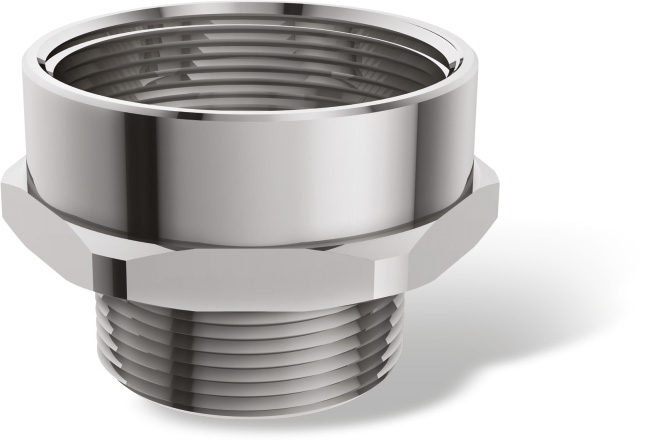

Metric Threads Adaptor For Cable Gland
METRIC TO METRIC ADAPTOR

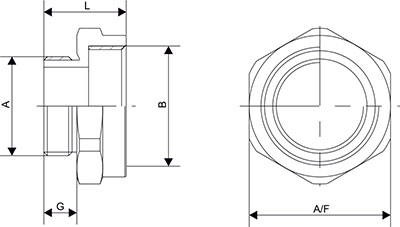

| CODE | A | B | L | G | A/F |
|---|---|---|---|---|---|
| AD0M1M | M16X1.5 | M20X1.5 | 33 | 15 | 25 |
| AD0M2M | M16X1.5 | M25X1.5 | 33 | 15 | 30 |
| AD1M1M | M20X1.5 | M20X1.5 | 33 | 15 | 25 |
| AD1M2M | M20X1.5 | M25X1.5 | 33 | 15 | 30 |
| AD1M3M | M20X1.5 | M32X1.5 | 33 | 15 | 36 |
| AD2M2M | M25X1.5 | M25X1.5 | 33 | 15 | 30 |
| AD2M3M | M25X1.5 | M32X1.5 | 33 | 15 | 36 |
| AD2M4M | M25X1.5 | M40X1.5 | 33 | 15 | 45 |
| AD2M5M | M25X1.5 | M50X1.5 | 33 | 15 | 55 |
| AD3M3M | M32X1.5 | M32X1.5 | 33 | 15 | 36 |
| AD3M4M | M32X1.5 | M40X1.5 | 33 | 15 | 45 |
| AD3M5M | M32X1.5 | M50X1.5 | 33 | 15 | 55 |
| AD4M4M | M40X1.5 | M40X1.5 | 33 | 15 | 45 |
| AD4M5M | M40X1.5 | M50X1.5 | 33 | 15 | 55 |
| AD4M6M | M40X1.5 | M63X1.5 | 33 | 15 | 68 |
| AD4M7M | M40X1.5 | M75X1.5 | 38 | 15 | 80 |
| AD5M5M | M50X1.5 | M50X1.5 | 33 | 15 | 55 |
| AD5M6M | M50X1.5 | M63X1.5 | 35 | 15 | 68 |
| AD5M7M | M50X1.5 | M75X1.5 | 38 | 15 | 80 |
| AD6M6M | M63X1.5 | M63X1.5 | 33 | 15 | 68 |
| AD6M7M | M63X1.5 | M75X1.5 | 38 | 15 | 80 |
| AD6M8M | M63X1.5 | M90X1.5 | 38 | 15 | 95 |
| AD7M7M | M75X1.5 | M75X1.5 | 43 | 20 | 80 |
| AD7M8M | M75X1.5 | M90X1.5 | 43 | 20 | 95 |
| AD7M9M | M75X1.5 | M100X1.5 | 43 | 20 | 105 |
| AD8M8M | M90X1.5 | M90X1.5 | 43 | 20 | 95 |
METRIC TO NPT ADAPTOR
| CODE | A | B | L | G | A/F |
|---|---|---|---|---|---|
| AD0M0N | M16X1.5 | 3/8” NPT | 33 | 15 | 20 |
| AD0M1N | M16X1.5 | 1/2” NPT | 36 | 15 | 25 |
| AD0M2N | M16X1.5 | 3/4” NPT | 36 | 15 | 30 |
| AD1M1N | M20X1.5 | 1/2” NPT | 36 | 15 | 25 |
| AD1M2N | M20X1.5 | 3/4” NPT | 36 | 15 | 30 |
| AD1M3N | M20X1.5 | 1” NPT | 40 | 15 | 36 |
| AD2M2N | M25X1.5 | 3/4” NPT | 36 | 15 | 30 |
| AD2M3N | M25X1.5 | 1” NPT | 40 | 15 | 36 |
| AD2M4N | M25X1.5 | 1.1/4” NPT | 40 | 15 | 45 |
| AD3M3N | M32X1.5 | 1” NPT | 40 | 15 | 36 |
| AD3M4N | M32X1.5 | 1.1/4” NPT | 40 | 15 | 45 |
| AD3M5N | M32X1.5 | 1.1/2” NPT | 42 | 15 | 55 |
| AD4M4N | M40X1.5 | 1.1/4” NPT | 40 | 15 | 45 |
| AD4M5N | M40X1.5 | 1.1/2” NPT | 42 | 15 | 55 |
| AD4M6N | M40X1.5 | 2” NPT | 42 | 15 | 65 |
| AD5M5N | M50X1.5 | 1.1/2” NPT | 42 | 15 | 55 |
| AD5M6N | M50X1.5 | 2” NPT | 42 | 15 | 65 |
| AD5M7N | M50X1.5 | 2.1/2” NPT | 46 | 15 | 75 |
| AD6M6N | M63X1.5 | 2” NPT | 42 | 15 | 65 |
| AD6M7N | M63X1.5 | 2.1/2” NPT | 46 | 15 | 75 |
| AD6M8N | M63X1.5 | 3” NPT | 46 | 15 | 90 |
| AD7M7N | M75X1.5 | 2.1/2” NPT | 51 | 20 | 75 |
| AD7M8N | M75X1.5 | 3” NPT | 51 | 20 | 90 |
| AD7M9N | M75X1.5 | 4” NPT | 53 | 20 | 115 |
| AD8M8N | M90X1.5 | 3” NPT | 51 | 20 | 90 |
| AD8M9N | M90X1.5 | 4” NPT | 53 | 20 | 115 |
| AD9M9N | M100X1.5 | 4” NPT | 53 | 20 | 115 |
